Shape:round/ribbon
Diameter(round):0.1mm-5.2mm
Diameter(ribbon):Width:10-195mm/Thickness:0.04-4mm
Surface:Bright Annealing/ Acid Pickling/ Oxidation Coating/ Coating Application/ Polishing
Softness:Annealed Soft/Hard/Half-hard
Standard:JB/T5328
MOQ:100KG
Delivery time:Contact US
Supply Quantity:Contact US
Origin: China
Accept OEM
Performance: High resistivity, excellent oxidation resistance, and anti-creep properties at high temperatures. Long service life.

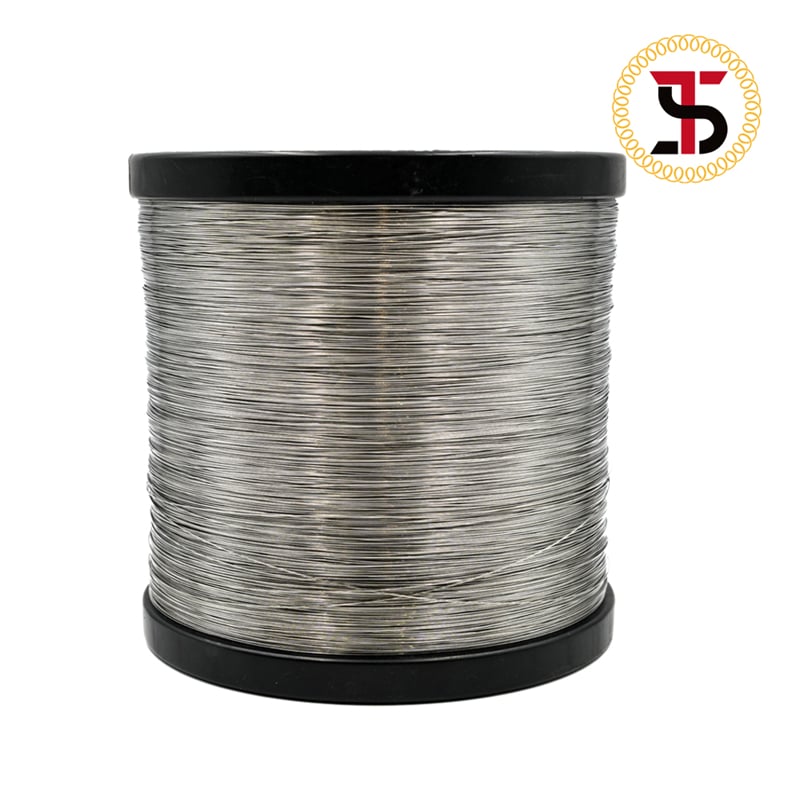

Composition: Iron, chromium>24%, aluminum>5%.
Operating Temperature: Maximum working temperature up to 1250℃.
Applications: Used in household appliances for heating elements, such as oven heating tubes.
| Grade | Diameter/mm | Resistivity (20 ℃)/μΩ`m |
| Cr20Ni80 | <0.50 | 1.09 ± 0.05 |
| 0.50～3.00 | 1.13 ± 0.05 | |
| >3.00 | 1.14 ± 0.05 | |
| Cr30Ni70 | <0.50 | 1.18 ± 0.05 |
| ≥0.50 | 1.20 ± 0.05 | |
| Cr15Ni60 | <0.50 | 1.12 ± 0.05 |
| ≥0.50 | 1.15 ± 0.05 | |
| Cr20Ni35 | - | 1.04 ± 0.05 |
| Cr20Ni30 | - | 1.04 ± 0.05 |
| Cr20Ni25 | <0.50 | 1.25 ± 0.08 |
| 0.50～3.00 | 1.23 ± 0.07 | |
| >3.00 | 1.35 ± 0.06 | |
| 0Cr25Al5 | 0.020～10.00 | 1.40 ± 0.07 |
| 0Cr23Al5 | - | 1.35 ± 0.06 |
| 0Cr21Al4 | - | 1.25 ± 0.08 |
| 0Cr21Al6Nb | - | 1.42 ± 0.07 |
| 0Cr27Al7Mo2 | - | 1.53 ± 0.07 |
| 0Cr18Al3 | - | 1.25 ± 0.08 |
| 0Cr13Al4 | - | 1.23 ± 0.07 |
| Grade | Density (g/cm³) | Elongation (%) | Tensile Strength (MPa) |
| Cr20Ni80 | 8.4 | 20-30 | 650-800 |
| Cr30Ni70 | 8.2 | 18-25 | 600-750 |
| Cr15Ni60 | 8.2 | 15-25 | 650-850 |
| Cr20Ni35 | 7.9 | 15-22 | 600-750 |
| Cr20Ni30 | 7.8 | 15-20 | 580-700 |
| Cr20Ni25 | 7.8 | 12-18 | 550-680 |
| 0Cr25Al5 | 7.1 | 8-15 | 600-800 |
| 0Cr23Al5 | 7.1 | 8-12 | 650-850 |
| 0Cr21Al4 | 7.1 | 10-16 | 550-750 |
| 0Cr21Al6Nb | 7.2 | 10-18 | 600-850 |
| 0Cr27Al7Mo2 | 7.2 | 6-10 | 700-900 |
| 0Cr18Al3 | 7.0 | 12-20 | 500-700 |
| 0Cr13Al4 | 7.0 | 10-18 | 550-750 |
Product Form: Coils(diameter≥1.0mm)/Spools(diameter<1.0mm), or specified by the buyer.
Inner Package Form: Coils package with plastic film/bulk bag, spools package in cardboard boxes, or specified by the buyer.
Shipping Package Form: Carton/wooden box, or specified by the buyer
A: We are a manufacturer, and all our products are priced at FOB Shanghai Port by default. Alternatively, we can accommodate customer-specified trade terms.
A: Absolutely. We can recommend the most suitable product based on your required ingredients and accept OEM, ODM, and CMT services.
A: Our shipment volume and delivery time vary based on our inventory and production capacity. If you have specific requirements regarding delivery time and quantity, please contact us for details.
A: For samples valued below 200 RMB, we do not charge for the sample itself; however, the buyer is responsible for the shipping fees.
